Products

Time taken: 3 Max score: 1000.000 Total hits: 100 Full time: 0.0 s
Showing 1-10 of 100 products

B007OWQ23Q Availability: Currently unavailable Score: 1000.000 Category: Electronics Rating: 5 Votes: 3 Find similar products Velleman VM110N USB Interface Card Module. The VM110N interface board has 5 digital input channels and 8 digital output channels. In addition, there are two analogue inputs and two analogue outputs with 8 bit resolution. The number of inputs/outputs can be further expanded by connecting more (up to a maximum of four) cards to the PC's USB connectors. All communication routines are contained in a Dynamic Link Library (DLL) K8055D.DLL. You may write custom Windows (XP or higher) applications in Delphi, Visual Basic, C++ Builder or any other 32-bit Windows application development tool that supports calls to a DLL. Source code for Visual Basic , Visual C++, Visual C#, Excel, Delphi and Borland C++ Builder included. Minimum system requirements: Pentium class CPU USB1.1 or higher connection Windows XP or higher CD ROM player and mouse DIAGNOSTIC / TEST SOFTWARE: separate output / input test clear all / set all function counter function on inputs 1 and 2 with adjustable debounce (max 2KHz depends on total I/O load) analogue output set sliders analogue input bar-graph indication 100% compatible with: VM110 & K8055 cards Specifications 5 digital inputs (0= ground, 1= open) (on-board test buttons provided) 2 analogue inputs with attenuation and amplification option (internal test +5V provided) 8 digital open collector output switches (max 50V/100mA) (on-board LED indication) 2 analogue outputs: 0 to 5V, output resistance 1K5 PWM 0 to 100% open collector outputs max 100mA / 40V (on-board LED indication) general response time: 2ms per command power supply: through USB approx. 70mA dimensions: 110 x 80mm / 4.3 x 3.2 Application for Android, plug-in for IPEmotion measurement software, AREMBEUSB ActiveX Control & Software Development Kit, and more software are available on the Velleman website.	B07KPMK8VX Availability: Currently unavailable Score: 7.246 Category: Electronics Rating: 2 Votes: 1 Find similar products STLINK-V3 Modular in-Circuit debugger and Programmer for STM32/STM8. The STLINK-V3SET is a modular stand-alone debugging and programming probe for the STM8 and STM32 microcontrollers. It is composed of a main module and a complementary adapter board. The SWIM and JTAG/SWD interfaces are used to communicate with any STM8 or STM32 microcontroller located on an application board. The STLINK-V3SET also provides a Virtual COM port interface allowing the host PC to communicate with the target microcontroller through one UART, and bridge interfaces (SPI, I2C, CAN, GPIOs) allowing for instance the programming of the target through bootloader. The modular architecture of STLINK-V3SET enables to extend its main features through additional modules such as the adapter board. Key Features: Stand-alone probe with modular extensions Self-powered through a USB connector (Micro-B) USB 2.0 high-speed compatible interface Direct firmware update support (DFU) JTAG / serial wire debugging (SWD) specific features: 3 V to 3.6 V application voltage support and 5 V tolerant inputs, Flat cables STDC14 to MIPI10 / STDC14 / MIPI20 (connectors with 1.27 mm pitch), JTAG communication support, SWD and serial wire viewer (SWV) communication support SWIM specific features (only available with adapter board MB1440): 1.65 V to 5.5 V application voltage support, SWIM header (2.54 mm pitch), SWIM low-speed and high-speed modes support Virtual COM port (VCP) specific features: 3 V to 3.6 V application voltage support on the UART interface and 5 V tolerant inputs, VCP frequency up to 15 MHz, Available on STDC14 debug connector (not available on MIPI10) Multi-path bridge USB to SPI/UART/I2C/CAN/GPIOs specific features: 3 V to 3.6 V application voltage support and 5 V tolerant inputs, Signals available on adapter board only (MB1440) Drag-and-drop Flash programming Two color LEDs: communication, power.
B00FAQSMR2 Price: $14.99 Score: 7.246 Category: Electronics Rating: 5 Votes: 4 Find similar products FTDI USB to Serial Breakout Board - Three Pack of The VisiPort2. Designed, Assembled, Tested and Distributed in the USAThis item includes three VisiPortsThe VisiPort2 is a USB To Serial Module that has been designed to program Arduinos. Its small size allows it to fit into bread board where other programmers are too big and bulky. It is designed to program Arduinos. Its six pin female header connects easily to a Mini Pro with no bread board needed. It has one green LED that indicates power is applied to the FTDI chip. There are two amber LEDs to indicate when Tx and Rx are active. The VisiPort2 works with 5Volt and 3.3Volt Arduinos Use the three pin jumper in the upper right corner to select I/O voltage of the VisiPort2. This selection allows compatibility with all Arduinos. The VisiPort2 Uses a Micro USB Connector The Micro USB connector is lower profile and allows cables to connect into the center of the VisiPort2. This keeps the overall size smaller than any other programmer. The VisiPort2 has a Flexible Arduino Reset We gave the VisiPort2 jumper selectable DTR or RTS reset capability.	B00LZVEQEY Price: $7.49 Score: 7.092 Category: Electronics Rating: 4.4 Votes: 71 Find similar products HiLetgo CP2102 USB to TTL UART 232 485 Port Mutual Convert Adapter USB Serial Port Adapter 6 in One Multi-Functional USB Serial Debug Tool for Windows Wince Linux Mac 32 64. 6 in One USB to UART Serial Interface Module CP2102 USB TTL 485 232 Mutual Transfer Six in ONE Multifunctional interface module: USB to TTL USB to 232 USB to 485 TTL to 232 TTL to 485 232 to 485 Features: CP2102 core chip : CP2102 USB to serial chip is the best quality , most stable performance far exceeds the cost of the same chip , such as PL2303, FT232, CH341 and so on. High-speed, reliable, stable is capable of leading CP2102 USB to serial module sales in the important reasons. Ultra-small size : the circuit board only 3.1cm X 1.8cm. Ultra- small size , lack of a U disk size , only with a USB port width , even on those two USB ports from a very tight laptop can easily be placed side by side two . 3.3V and +5 V Compatibility: This product perfectly supports 3.3V. Now a lot of high-end microcontroller, such as ARM, STM32, DSP , adopted 3.3V. Additional modules are only compatible 5V level , they do not have 3.3V voltage output function. Power Output: This module can be powered through to the microcontroller system to facilitate debugging. 5V-500mA or 3.3V-100mA. Overcurrent protection : Onboard resettable fuse , even if the positive and negative short-circuit will not damage the circuit board or computer. If there is a short circuit or current exceeds 500mA , the fuse will automatically disconnect , to be short-circuited fuse circuit to restore non- normal . Effectively protect the security of your computer. Transceiver indicator : When the serial line to send or receive data lines , the board will receive indicator lights for easy debugging.

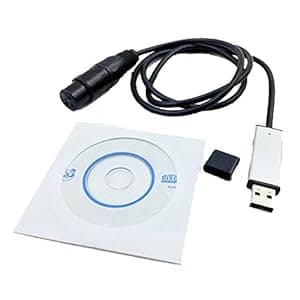

B00MWX3X02 Availability: Currently unavailable Score: 6.993 Category: Electronics Rating: 5 Votes: 1 Find similar products Mini USB to DMX 512 Interface Adapter Controller Dmx512 Pc Stage Lighting Controller Dimmer Dongle Freestyler. The signed driver for Windows XP, Vista and Windows 7. Besides, on Unix-based operating systems, the LibUSB is integrated directly into the kernel. Uncompress the file whereever you want and then plugin the hardware. The operating system will search for a driver. Select the correct directory (of you uncompression), After several seconds the driver should be installed ATTENTION: And then the file uDMX.dll has to be MANUALLY copied to the directory Windows System32 in order to finish the installation. After uDMX.dll has been copied to the directory of windows System32, for example C:/WINDOWS/system32, the driver installation is finished. Download the compressed driver file. Advantages of Artnet or why you should use artnet-receiver for X-uDMX512: Artnet is a network protocol to transfer DMX data over the ip network. Thus it is possible to transfer DMX data with wireless LAN. Most DMX-Software are able to output DMX-data to Art-Net. So it is not necesary to have a plugin for each program. uDMX can even be used with programs where there is no plugin.This works for example with:DMX-Control /Freestyler /Magic Q /Abuelites NOTE: It is not compatible with the all dmx Software. The signed driver for Windows XP, Vista and Windows 7. Besides, on Unix-based operating systems, the LibUSB is integrated directly into the kernel. Package 1 * USB TO DMX adapter 1 * CD.	B002R0DZWG Availability: Currently unavailable Score: 6.803 Category: Electronics Rating: 2.5 Votes: 3 Find similar products Syba 2 x ATA/133 IDE PCI ITE Chipset SY-PCI45004. Compliant with UDMA 5 ATA/100 or UDMA 6 ATA/133 Specification. Compliant with ATA/ATAPI-5 or ATA/ATAPI-6 Specification. Supports maximum data transfer rate of 100MB/s or 133MB/s. Compliant with PCI Specification Revision 2.1 & 2.2. Compliant with PCI IDE Controller Revision 1.0. Compliant with Programming interface for Bus Master IDE Controller Revision 1.0. Two independent Ultra ATA channels with 128/256 bytes buffer per channel. Connect up to four IDE/ATA devices (coexist with On-board IDE ports), ATA-2, IDE and ATAPI devices. Supports Ultra and Multi-Word DMA timing modes. Enhanced data integrity of transferred data with CRC (Cyclical Redundancy Check) protection and verification. Built-in 80pin detect circuitry.
B013UQD6Q0 Price: $299.99 Score: 6.667 Category: Electronics Rating: 5 Votes: 3 Find similar products Original Atmel-ICE AVR SAM Programmer Debugger Supports JTAG SWD PDI TPI aWire SPI debugWIRE @XYGStudy. Overview Atmel-ICE is a powerful development tool for debugging and programming Atmel ARM Cortex-M based Atmel SAM and AVR microcontrollers with on-chip debug capability. Key Features Supports JTAG, SWD, PDI, TPI, aWire, SPI and debugWIRE interfaces Full source-level debugging in Atmel Studio Supports all built-in hardware breakpoints in the target microcontroller (number depends on the OCD module in the target) Up to 128 software breakpoints 1.62 to 5.5V target operation USB powered Provides both ARM Cortex Debug Connector (10-pin) pin-out and AVR JTAG connector pin-out Supported Software Perfectly supports Atmel Studio 6.2 or higher version Directly supports ICC8AVR or higher version Supports programming HEX files generated by ICCAVR, CVAVR, IAR, etc. Supported Devices Programming and on-chip debugging of all Atmel AVR 32-bit MCUs on both JTAG and aWire interfaces Programming and on-chip debugging of all Atmel AVR XMEGA family devices on both JTAG and PDI 2-wire interfaces JTAG and SPI programming and debugging of all Atmel AVR 8-bit MCUs with OCD support on either JTAG or debugWIRE interfaces Programming and debugging of all Atmel SAM ARM Cortex-M based MCUs on both SWD and JTAG interfaces Programming of all Atmel tinyAVR 8-bit MCUs with support for the TPI interface Package Contains: Atmel-ICE unit × 1 USB cable (1.8m, high-speed, micro-B) × 1 Adapter board containing 50-mil AVR, 100-mil AVR/SAM and 100-mil 20-pin SAM adapters × 1 IDC flat cable with 10-pin 50-mil connector and 6-pin 100-mil connector × 1 50-mil 10-pin mini squid cable with 10 x 100-mil sockets × 1 6-pin to 10-pin ISP cable (extra free accessory from Waveshare) × 1 For more resources you may need, pls contact me via Amazon message, i will send you then via attachment.	B009NR8ZY4 Availability: Currently unavailable Score: 6.623 Category: Electronics Rating: 3.9 Votes: 4 Find similar products EZ-USB FX2LP CY7C68013A USB Development Core Board Logic Analyzer EEPROM. Features : Using CY7C68013A-56 chip: low-power version of the enhanced 51-core, 16KB program data areas, frequency of 48Mhz, 480Mbps high-speed transmission protocol standards, in line with USB2.0 specification, backward compatible with USB1.1. Firmware, EEPROM: Complete in-system programming solution with a USB cable directly to download firmware, on-board to provide 16K (24LC128) a large program memory (EEPROM), used as storage VID / PID and the USB firmware, the program space to meet the CY7C68013A Needs. All the GPIO pin through the 2.54mm standard leads to very convenient for learners toexpand DIYdesign. With the board firmware can be achieved through the core function of the logic analyzer PDF format, provide the schematic and code Package included： 1 x CY7C68013A core development board.
B00KM6XD1A Price: $10.99 Score: 6.623 Category: Electronics Rating: 5 Votes: 3 Find similar products Waveshare RS232 Board SP3232 RS232 Communication Module Kit Development Board SP3232 COM/UART Port. RS232 communication board, SP3232 on board, 3V-5.5V, ESD enhanced, hardware flow control supported Overview The RS232 Board is used for establishing RS232 communication with devices powered from 3V - 5.5V. It contains SP3232 (RS-232 Transceiver) and DB9 connector used for connecting PC and MCU. The RS232 Board features ESD protection and supports hardware flow control. Features SP3232(RS232), DB9 connector, UART port Photos Package Contains RS232 Board ¡Á 1 RS232 Board ¡Á 1 Downloads Development resources: demo codes, schematic, datasheets, etc.Click here to download Check out the compatibility between Accessory Boards and Development Boards.	B008958S7A Availability: Currently unavailable Score: 6.579 Category: Electronics Rating: 2 Votes: 2 Find similar products ITEAD Prolific PL2303 USB to TTL Module. The PL-2303HX is a low cost and high performance USB-to-Serial Bridge Controller. The PL-2303HX provides a convenient solution for connecting an RS-232 like full-duplex asynchronous serial device to any Universal Serial Bus (USB) capable host. The PL-2303HX highly compatible drivers could simulate the traditional COM port on most operating systems allowing the existing applications based on COM port to easily migrate and be made USB ready. The PL-2303HX is exclusively designed for mobile and embedded solutions in mind, providing a small footprint that could easily fit in to any connectors and handheld devices. With very small power consumption in either operating or suspend mode, the PL-2303HX is perfect for bus powered operation with plenty of power left for the attached devices. Flexible signal level requirement on the RS-232 like serial port side also allows the PL-2303HX to connect directly to 5V, 3.3V, or 2.5V devices. Works well with Linux and Mac. Does not work so well with Windows. If you are running Windows then buy a FTDI FT232RL board instead.
