Products

Time taken: 3 Max score: 1000.000 Total hits: 100 Full time: 0.0 s
Showing 1-10 of 100 products

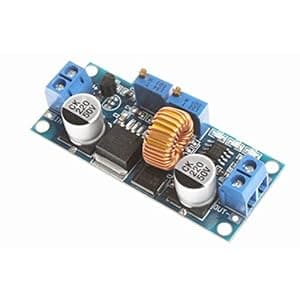

B07G446KHJ Price: $5.99 Score: 1000.000 Category: Electronics Rating: 3.6 Votes: 12 Find similar products NOYITO DC to DC 5A Adjustable Buck Regulator Power Supply Module CC CV DC 5V - 32V Buck to 0.8V - 30V Output ADJ Constant Voltage Constant Current Step-Down Power Supply Module LED Driver Board. Features: The module uses high-quality chips, high efficiency (up to 95%), low heat generation, maximum 5A current, and TI's op amp control output current, making the overall output very stable. This module uses a low-ESR filter capacitor to reduce ripple voltage to 50mV! Module nature: non-isolated buck module Rectification mode: asynchronous rectification Wiring port: Input mode: IN+ input positive, IN- input negative Output mode: OUT+ output positive, OUT-output negative Input voltage: DC 5V-32V Output voltage: DC 0.8V-30V Output current: Adjustable , Max 5A Conversion efficiency: 95% (maximum) Switching frequency: 300KHz Output ripple: 50mV (maximum) 20M bandwidth Load adjustment rate: +/-0.5% Voltage regulation rate: +/- 2.5% Operating temperature: -40°C to +85°C Size: 5126.314 (length * width * height) (mm) Package Included: 1Pcs NOYITO DC-DC 5A Adjustable Buck Regulator Power Supply Module.	B07JYX4J4N Availability: Currently unavailable Score: 13.158 Category: Electronics Rating: 3.5 Votes: 20 Find similar products ZYAMY LM2596S Buck Converter DC-DC Adjustable 3A Step Down Power Supply Module Voltage Regulator. Parameter: Name: LM2596S Step Down Buck Converter Size: 43x21x14mm (LxWxH) Quantity: 1pc 1. Input Voltage: 3.2-35V Adjustment: First connect the input power supply correctly (between 3.2V-35V), then use a multimeter to monitor the output voltage and adjust the potentiometer (generally turn clockwise to boost voltage, turn counterclockwise to reduce voltage). 2. Output Voltage: 1.25-30V continuously adjustable (No-load debugging is recommended) 3. Output Current: Rated current 1A, MAX 2A (Need heat sink), if output power is more than 15W, please add heat sink. 4. Transfer Efficiency: 92% max, (Higher output voltage, higher efficiency.) 5. Static Power Consumption: Approx. 3mA 6. Please keep 1.5V minimum voltage difference to ensure stable output. Note: When adjusting voltage, the load should be connected first and the power should be off. Counterclockwise is buck, clockwise is boost.
B00OJUL80S Availability: Currently unavailable Score: 11.236 Category: Electronics Rating: 3.1 Votes: 3 Find similar products SMAKN LM317 DC-DC Linear Converter Buck Step Down Low Ripple Power Supply Module. Output Current: 1.5A (min), 2.2A (type) Input-output voltage differential (VI-VO): 40Vdc (max) Adjustable output voltage range: 1.2 ~ 37V Operating temperature: -55°C to +150°C Current output: 1.5A Voltage Input: 4.2 ~ 40 V Characteristic frequency: 100 (MHz) Module size: 35.6 (mm) x16.8 (mm) Package included: 1 pcs LM317 DC-DC Converter Buck Circuit Board Adjustable Linear Regulator.	B07BDDM8RD Price: $6.99 Score: 10.526 Category: Electronics Rating: 2.5 Votes: 2 Find similar products NOYITO Voltage to Current Module 0-24V to 0-20mA. Features: Using single-chip embedded technology. Implement the industry standard voltage (0-24V) into an industry standard current (0-20mA). Linear output, output signal can be directly connected to the AD converter. Can be connected with a microcontroller with AD function. Easy to operate, can be fine-tuned by potentiometer. Module operating voltage: DC12-24V Pin Description: 24V: Operating power supply 24V DC +. GND: 24V DC-. P1: Adjustable potentiometer 1 pin; VIN + (V + / P2): Input voltage ,0-24V DC- (OR adjustable potentiometer 2 pin). VIN- (V- / P3): INPUT DC- (OR adjustable potentiometer 3 pin) 0V: Output current 0-20mA Special Instructions: The working voltage connected to V + and V-, can not be reversed, so as not to damage the control panel and components. In the VIN terminal control voltage, the range is 0-5V, there is a corresponding output at the output current. The correspondence between voltage and current can be fine-tuned by adjusting the potentiometer. Package Included: 1 Pcs NOYITO Voltage To Current Module NOYITO brand products have a two-year after-sales warranty. If there is a non-human product failure within two years, please contact us. We will provide you with after-sales service.
B07FMQKF9K Price: $8.5 Score: 10.526 Category: Electronics Rating: 4.4 Votes: 52 Find similar products NOYITO AC to DC Precision Buck Power Supply Module AC 120V 100V-264V to 5V 1.5A 1500mA Isolated Step Down DC Module (5V 1.5A). Description Isolated Precision Buck Power Supply Module ，Wide voltage range input with overload, short circuit, over temperature protection. Ultra-small size and high efficiency. Output parameters: Output voltage: 5V ±1%. Output current: 1.5A 1500mA. Ripple: less than 60mVp-p. Output accuracy: ±1%. Voltage regulation rate: ±1%. Load adjustment rate: ±1.2% Rated power: 7.5W. Output adjustable range: not adjustable. Establish, rise, hold time: 500ms, 80ms, 80ms / 220V AC. Input parameters: Input voltage range: AC 100- 264V. Input current: less than 0.2A. (Average current 0.03A-0.1A). Frequency range: 47-63Hz. Efficiency: about 80%. Start surge current: COLD START 30A/230V / AC. Leakage current: less than 2mA / 220V AC. Protection features: Over power protection: 150-170% rated power. (Fault removal is automatically restored). Overvoltage protection: VH: >50%. DC short circuit protection: The power supply is intermittently separated. (Recovery is automatically restored). Environmental parameters: Working temperature: -15 ° C - +50 ° C @ 100% LOAD , +60 ° C @ 60% LOAD; Working humidity: 20%-90% RH. Storage temperature, humidity: -20 ° C - +85 ° C, 10% -95% RH. Safety and EMC standards: Withstand voltage: I/P-O/P: 1KV AC 1min. Insulation resistance: I/P-O/P: 500VDC / 100M Ohms. Package Included: 1Pcs 5V 1.5A 1500mA AC-DC Precision Buck Power Supply Module.	B07G456MS8 Price: $6.99 Score: 10.417 Category: Electronics Rating: 4.7 Votes: 8 Find similar products NOYITO DC to DC 5A 75W Buck Power Supply Module CC CV DC 5V - 36V Buck to 1.2V - 32V Output ADJ 75W Max Constant Voltage Constant Current Step-Down Power Supply Module LED Driver Board. Module features: 1. High power, high efficiency, 5A, low ripple; 2. Three-in-one: used as a common step-down module with overcurrent protection; used as a charger for various voltage lithium batteries, batteries, nickel-cadmium nickel-hydrogen batteries (batteries), for solar panels, wind power generation Machine and other occasions; used as a high-power LED constant current drive module; 3. There are two modes of constant voltage and constant current, and there are indicators to indicate which mode the module is currently in; 4. When used as a lithium battery charger, you can set the float voltage and charge current, and the indicator light indicates whether it is charging or is full; 5. With current limiting protection, the module will not burn out even if the output is short circuited. Module parameter Input voltage: DC 5V - 36V. Output voltage: DC 1.25V - 32V continuously adjustable. Output current: adjustable, 5A (recommended for use within 4.5A). Output power: 75W (recommended to use within 50W, please reduce power when using large differential pressure). Working temperature: -40~+85 °C. Working frequency: 180KHz. Conversion efficiency: 96%. Short circuit protection: Yes (limit current 8A). Over temperature protection: Yes (automatically turn off the output after over temperature). Input reverse connection protection: None, (If necessary, please input a large current diode in the input string). Installation method: 4 pieces of 3mm twisted wire. Wiring method: terminal block or soldering terminal, V-IN is input, V-OUT is output. Module size: length 68.2mm width 38.8mm height 15mm. Weight: 35g. Note: When using this module for more than 3A, 35W, please strengthen the heat! ! ! Package Included 1Pcs NOYITO DC-DC 5A 75W Buck Power Supply Module.
B0B63C1458 Price: $22.99 Score: 10.204 Category: Electronics Rating: 4.5 Votes: 31 Find similar products BULVACK 20-Pack LM2596 DC to DC High Efficiency Voltage Regulator 3.0-40V to 1.5-35V Buck Converter DIY Power Supply Step-Down Module. Electrical Parameters: Input Voltage: DC 3 -40 V Output Voltage: DC 1.5 - 35 V Output Current: 3A(MAX) It is recommended to use under 2A (NOTE: When using high power, add a heat sink to the power supply chip) Load adjust ratio: +/-0.5% Voltage adjust ratio: +/-2.5% Transferring efficiency: 92% Max(the higher output voltage, the higher efficiency) ON/OFF frequency: 150KHz Output ripple: 200mV Module feature: buck and non-isolated Rectification method: non-synchronous rectification Function: 1.Built in over-temperature protection function 2.Built in current limit function 3.Built in output short-circuit protection function How to use： 1.Access the power supply ( 3 -40 V), the power indicator light, the module is working properly. 2.Adjust the blue potentiometer knob (usually clockwise rotation boost, counterclockwise rotation Step-down) and monitor the output voltage with a multimeter to reach the required voltage. 3.A customer reflects the module output voltage can not be adjusted, always equal to the input voltage. When you encounter this problem, please first counterclockwise rotation potentiometer 10 laps above, and then use the module can be normal adjustment of the voltage. Package includes: 20 X LM2596 board Note: This is a buck module. The input voltage must be higher than the output voltage. The input and output interface can not be reversed. It is recommended to use the current within 2.5A when working for a long time. If it exceeds 2A, you need to add a heat sink (output above 10W).	B07TCF26NT Price: $10.83 Score: 10.204 Category: Electronics Rating: 4.8 Votes: 3 Find similar products DC-DC Buck Converter Step Down Voltage Regulator DC 4.5V-30V to 0.8V-12V Buck Converter Constant Voltage Constant Current Adjustable Power Supply Module. DC-DC Buck Converter Step Down Voltage Regulator DC 4.5V-30V to 0.8V-12V Buck Converter Constant Voltage Constant Current Adjustable Power Supply Module.
B085VYBJ3N Price: $16.1 Score: 9.709 Category: Electronics Rating: 2.6 Votes: 3 Find similar products Multifunctional PWM Signal Voltage Current Converter Module PWM Signal to 0-20MA 0-3.3V/0-5V/0-10V Voltage to 0-20MA. Specification: Item Type: Conversion Module Supply Voltage: DC8-30V, (recommended supply voltage is 24V, high voltage supply can support wider signal load internal resistance) Maximum Supply Current Consumption: 35mA/24V The PWM Input Interface Supports Signal Level Types: TTL signal level, NPN-OC signal input. 24VVPP signal level input, PNP type PWM signal input is not supported by default. The PWM Signal Supports The Frequency Range: 50HZ~4KHZ. It is recommended to use between 1-2KHZ. The current accuracy of the module output: ±3%, temperature drift value: less than 3%. Maximum Support Output Internal Resistance: 200Ω. Size: Approx. 4.8 x 4.4 x 2cm / 1.9 x 1.7 x 0.8in, 4xM3 screw fixing holes Package List: 1 x Conversion Module Feature: 1. Digital PWM signal input controls analog 0-20MA current output 2. Support 0-3.3V/0-5V/0-10V voltage analog signal input control 0-20MA current output 3. The adjustable potentiometer on the board is used to match the different signal sources to correct the contrast relationship 4. The 5V-OUT interface supports 50MA current externally and can be used by external circuits 5. The module current output interface is directly shorted to the ground wire and will not be damaged.	B097DM5733 Price: $23.99 Score: 9.524 Category: Electronics Rating: 4.4 Votes: 8 Find similar products XWST DC DC Stabilizer 9V-36V to 13.8V Boost Buck Converter 5A 69W Waterproof Automatic Voltage Regulator Auto Step Up Down 13.8V Volt Transformer Module. XWST DCDC Power Supply Stabilizer Module Technical Specification: Input Voltage: DC 9V~36V (12V 24V) Output Voltage: DC 13.8V Output Current: 5A Output Power: 69W Conversion Efficiency: >93% No Load Voltage Range: Set voltage ±3% Load Regulation: ±3% Quiescent Power Dissipation: <10mA Operating Temperature: -25~65℃ Storage Temprature: -40~80℃ Operating Humidity: 10%~90% Waterproofing Grade: IP67 Over-current Protection: Yes Over-temperature Protection: Yes Short-circuit Protection: No Size: 74mm x74mm x 32mm Net Weight: 260g Material:aluminium shell Note: 1. Connect the wiring in strict according with the wiring instruction. 2. Use short and thick input & output wire to ensure output enough voltage and power. 3. If there are multiple output wire, do not combine the load. 4. Leave a margin for the power supply to ensure it can long-term stably working. Package Included: 1x DC-DC Stabilizer.
