Products

Time taken: 3 Max score: 1000.000 Total hits: 100 Full time: 0.0 s
Showing 1-10 of 100 products

B08P4CVXR4 Availability: Currently unavailable Score: 1000.000 Category: Electronics Rating: 4.9 Votes: 18 Find similar products FeatherS2 (ESP32-S2 Board). Technical Specifications - 32-bit 240 MHz Single-Core Processor - 16 MB SPI Flash - 8 MB Extra PSRAM - 2.4 GHz Wi-Fi - 802.11b/g/n - 3D Antenna - 2X 700 mA 3.3 V LDO Regulator - Optimized Power Path for Low-Power Battery Usage - LiPo Battery Management - Power (Red), Charge (Orange) & IO13 (Blue) LEDs - 21x GPIO - USB-C - APA102 RGB LED (CLK IO45, DATA IO40) - ALS-PT19 Ambient Light Sensor (IO14) - QWIIC/STEMMA Connector - Feather Format.	B072X7L7RJ Price: $32.99 Score: 7.692 Category: Electronics Rating: 3.9 Votes: 23 Find similar products NanoPi NEO Open Source Allwinner H3 Development Board Super Raspberry Pie Quad-core Cortex-A7 DDR3 RAM 512MB Run Ubuntu Core. -Specification- CPU Model: Allwinner H3 Number of Cores: Quad-core Frequency: 4Cortex-A7 Up to 1.2GHz Memory: RAM: 256MB/512MB Storage: MicroSD Slot: MicroSD1 for external storage up to 128GB Connectivity: Ethernet: 10/100M Ethernet Audio: Audio input/output Port: 5Pin, 2.0mm pitch pin header USB MicroUSB1: MicroUSB 2.0, OTG & Power In, Type A USB Host: 2.0 Type A1, 2.54 mm pin2 Pin-header GPIO: 2.54mm pitch 36pin. It includes UART, SPI, I2C, IO etc Serial Debug Port: 2.54mm pitch 4-pin-header Audio input/output Port: 2.0mm pitch 5-pin header LED Power LED(Red)1 System LED(Green)1 Others: Working Temperature: -20℃ to 70℃ Power: DC 5V/2A -OS Support- FriendlyCore 16.04(based on UbuntuCore-16.04) FriendlyCore Focal (Base on Ubuntu 20.04) FriendlyWrt 19.07.1(32-bit) Armbian DietPi Lakka Kali -Kernel version- Linux-4.14-LTS U-boot-2017.11 - Dimension - PCB: 4 Layer Dimension: 4040mm Weight: 14g(WITHOUT Pin-headers) -In the Box- NanoPi NEO 512MB with Pin x1 -After Sales- monica @ smartfire.cn Skype: monica_9122 -Technical Support- forum.youyeetoo.com/.

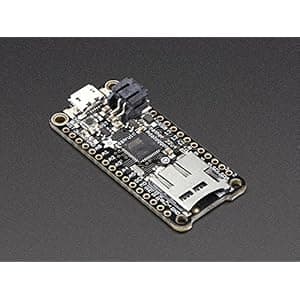

B074W4T8HQ Availability: Currently unavailable Score: 7.634 Category: Electronics Rating: 4 Votes: 1 Find similar products Adafruit (PID 2795) Feather 32u4 Adalogger. Feather is the new development board from Adafruit, and like its namesake it is thin, light, and lets you fly! We designed Feather to be a new standard for portable microcontroller cores. This is the Adafruit Feather 32u4 Adalogger - our take on an 'all-in-one' datalogger (or data-reader) with built in USB and battery charging. Its an Adafruit Feather 32u4 with a microSD holder ready to rock! We have other boards in the Feather family, check'em out here At the Feather 32u4's heart is at ATmega32u4 clocked at 8 MHz and at 3.3V logic, a chip setup we've had tons of experience with as it's the same as the Flora. This chip has 32K of flash and 2K of RAM, with built in USB so not only does it have a USB-to-Serial program & debug capability built in with no need for an FTDI-like chip, it can also act like a mouse, keyboard, USB MIDI device, etc. To make it easy to use for portable projects, we added a connector for any of our 3.7V Lithium polymer batteries and built in battery charging. You don't need a battery, it will run just fine straight from the micro USB connector. But, if you do have a battery, you can take it on the go, then plug in the USB to recharge. The Feather will automatically switch over to USB power when its available. We also tied the battery thru a divider to an analog pin, so you can measure and monitor the battery voltage to detect when you need a recharge. The Feather 32u4 Adalogger uses the extra space left over to add MicroSD + a green LED: Pin #8 green LED for your blinking pleasure MicroSD card holder for adding as much storage as you could possibly want, for reading or writing. Comes fully assembled and tested, with a USB bootloader that lets you quickly use it with the Arduino IDE. We also toss in some header so you can solder it in and plug into a solderless breadboard. Lipoly battery, MicroSD card and USB cable not included (but we do have lots of options in the shop if you'd like!).	B009CBDXDY Availability: Currently unavailable Score: 7.407 Category: Electronics Rating: 4.7 Votes: 4 Find similar products Arduino FIO V3 - ATmega32U4. The Fio v3 is a new spin on the Arduino Fio hardware powered by the ATmega32U4. While the Fio v3 is not yet compatible with the Arduino v1.0 IDE, it's still a very capable XBee-ready development board. The JST-connector and 3.3v system voltage make this a great development tool for portable devices, simply plug in a Li-Poly battery and you're ready to go. Wireless sensor networks and communication are made easy by the on-board XBee socket. The ATmega32U4, running at 8MHz, makes it possible for you to use the on-board USB jack not only to charge a connected Li-Poly battery but to actually program the device! Because this board uses a similar bootloader to the one on the Pro Micro, you will need to download and install the special software driver below. There's also a board definition add-on for the Arduino IDE which will add support for this board.
B005K0O1PA Price: $27.95 Score: 6.993 Category: Electronics Rating: 3.6 Votes: 7 Find similar products Arduino FIO. The Arduino Funnel I/O (Fio) is a board designed by Shigeru Kobayashi, based on the original design from LilyPad. Funnel is a toolkit to sketch your idea physically, and consists of software libraries and hardware. By using Funnel, the user can interface to sensors and/or actuators with various programming languages such as ActionScript 3, Processing, and Ruby. Arduino Fio is compatible with Funnel. It has connections for a Lithium Polymer battery and includes a charge circuit over USB. An XBee socket is available on the bottom of the board. The Fio has been designed to be wirelessly reprogrammable. Checkout our tutorial on wireless bootloading! Note: The miniUSB connector is used for battery charging only. To bootload new firmware, you will need an external serial connection over an FTDI Basic, cable, or other serial connection. Note: The XBee socket and FTDI connection live on the same TX/RX pins of the ATmega328. You will need to remove the XBee module while reprogramming over serial. We recommend using a wireless bootloader whenever possible to avoid this step.	B0819GCBQS Availability: Currently unavailable Score: 6.944 Category: Electronics Rating: 3.7 Votes: 3 Find similar products SparkFun Qwiic Micro-SAMD21 Development Board 1 inx1 in microcontroller Qwiic Connect System Micro-B USB Interface for Program Use Compatible with Arduino Platform or Python UF2 bootloader 3.3V Logic. Looking for a super small microcontroller to use with the Qwiic eco-system? The SparkFun Qwiic Micro is molded to fit our standard 1x1 Qwiic standard size which makes it one of our smallest micro-controller offerings to date. At it's core is the powerful and versatile ATSAMD21E18, which is an ARM Cortex M0+, 32-bit microcontroller, with 256KB of flash memory that can run at up to 48MHz! It has 12 digital pins which include 5 analog pins, SPI, I²C, and an additional UART data bus as well as a Qwiic connector for easy integration into the Qwiic ecosystem and I²C prototyping. On the underside of the Qwiic Micro, we've left open pads for a LiPo Battery connector that you can add yourself, if you wish you can make the micro-controller portable. We've also provided pads on the underside for a flash memory chip to maximize the board's memory capacity. The SparkFun Qwiic Micro comes programmed with a UF2 Bootloader making it easy to program with easy driver installation! If you need a tiny but mighty micro-controller for you next project check out the SparkFun Qwiic Micro. The SparkFun Qwiic Connect System is an ecosystem of I2C sensors, actuators, shields and cables that make prototyping faster and less prone to error. All Qwiic-enabled boards use a common 1mm pitch, 4-pin JST connector. This reduces the amount of required PCB space, and polarized connections mean you can’t hook it up wrong.
B00IX4038E Availability: Currently unavailable Score: 6.944 Category: Electronics Rating: 4 Votes: 1 Find similar products Digilent Zybo Zynq-7000 ARM/FPGA SoC Trainer Board - 410-279. The ZYBO (Zynq Board) is a feature-rich, ready-to-use, entry-level embedded software and digital circuit development platform built around the smallest member of the Xilinx Zynq-7000 family, the Z-7010. The Z-7010 is based on the Xilinx All Programmable System-on-Chip (AP SoC) architecture, which tightly integrates a dual-core ARM Cortex-A9 processor with Xilinx 7-series Field Programmable Gate Array (FPGA) logic. When coupled with the rich set of multimedia and connectivity peripherals available on the ZYBO, the Zynq Z-7010 can host a whole system design. The on-board memories, video and audio I/O, dual-role USB, Ethernet and SD slot will have your design up-and-ready with no additional hardware needed. Additionally, six Pmod connectors are available to put any design on an easy growth path. The ZYBO provides an ultra-low cost alternative to the ZedBoard for designers that don't require the high-density I/O of the FMC connector, but still wish to leverage the massive processing power and extensibility of the Zynq AP SoC architecture. The ZYBO is compatible with Xilinx’s new high-performance Vivado Design Suite as well as the ISE/EDK toolset. These toolsets meld FPGA logic design with embedded ARM software development into an easy to use, intuitive design flow. They can be used for designing systems of any complexity, from a complete operating system running multiple server applications in tandem, down to a simple bare-metal program that controls some LEDs. For systems that require an operating system, Digilent provides an out-of-the-box Linux solution specifically targeted to run on the ZYBO, complete with documentation describing how best to mold it to suite your purposes. These Xilinx tools and Linux solution are all available to use at no additional cost with the ZYBO. Note: The ZYBO ships with the SDSoC Voucher, but no other accessories are included.	B00X0J8WBM Availability: Currently unavailable Score: 6.757 Category: Electronics Rating: 5 Votes: 1 Find similar products SparkFun BLE Mate 2. This is the SparkFun BLE Mate 2, an efficient and reliable Bluetooth 4.0 development board. The BLE Mate 2 closely resembles a breakout board, in that nearly every pin on the on-board BC118 module is made available to access. This board is actually a close cousin to our Gold and Silver Bluetooth Mates and functions in a very similar way but, as the name implies, operates as Bluetooth Low Energy instead of Bluetooth 2.0. The BLE Mate 2 offers a six-pin header on the end opposite the BC118 module which is used as a “host” serial pinout, the same as that on the FTDI Basic boards, which allows the BLE Mate 2 to be connected directly to any device with a matching header, such as the SparkFun Arduino Pro and Pro Mini. Coupled with the FTDI SmartBasic, you can even develop your code without having to swap cables! The board has built-in level translation, so it can be used with boards of higher voltage than the 3.3V default used by the BC118. Each BLE Mate 2 offers BC118 module that is capable of accepting and transmitting via the UART at 9600bps (default) with a frequency band of 2,402 MHz to 2,480 MHz. The SparkFun BLE Mate 2 only supports Bluetooth 4.0; it won’t connect to older devices. It’s also worth noting that BLE does not support a Serial Port Protocol as older versions of Bluetooth did; that makes interoperability between BLE dongles, devices, and modules harder than with Bluetooth Classic.

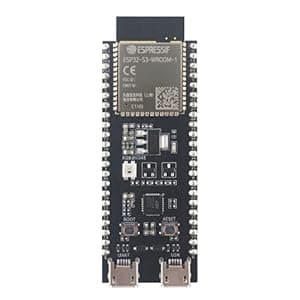

B09D3S7T3M Availability: Currently unavailable Score: 6.711 Category: Electronics Rating: 4.7 Votes: 23 Find similar products ESP32-S3-DevKitC-1-N8R2 Development Board. ESP32-S3 general-purpose development board, based on ESP32-S3-WROOM-1/1U or ESP32-S3-WROOM-2/2U. It has all the ESP32-S3 pins exposed and is easy to connect and use.	B08V8JWGDB Price: $9.19 Score: 6.623 Category: Electronics Rating: 4.6 Votes: 23 Find similar products Raspberry Pi Pico Microcontroller Development Board Low-Cost, High-Performance,Based on RP2040 Chip, Dual-core Arm Cortex M0+ Processor,Flexible Clock Running up to 133 MHz. .
